High-Performance Pipe Plugs: Easy Way to Block Flow in Tight Spaces

Catalogue:   Click Here

Plugs Of Larger Dimensions – PLUGY And PLUGSY

Savatech multi-size pipe plugs PLUGY and PLUGSY are reinforced with aramid cord and are noted for a wide application range. Each plug covers several pipe sizes. Multi-size ranges overlap to meet specific requirements. They can cover pipe diameters from 40 mm to 1800 mm. Plugs are flexible and bend easily around tight corners or when inserted through the manholes.

PLUGY And PLUGSY
PLUGY And PLUGSY

Accessories

Accessories

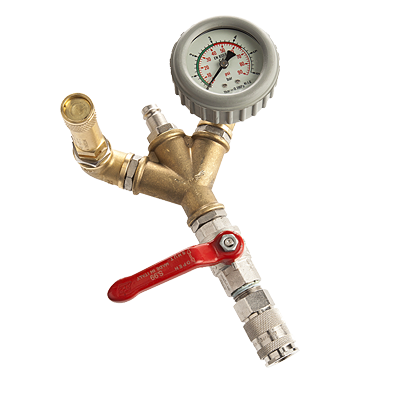

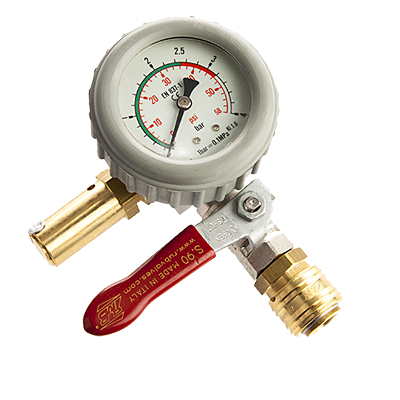

Single fitting controller

0.9 kg
3.0 bar - 537048
2.5 bar - 60310
1.5 bar - 74609
1.0 bar - 74653

Accessories

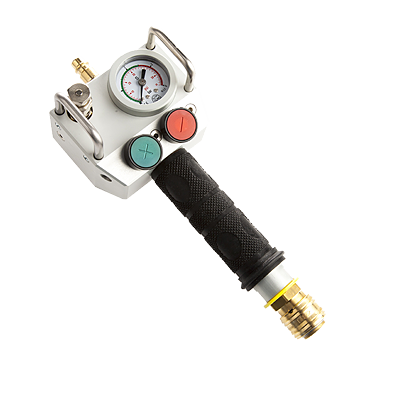

Hand held single Deadman

2.5 bar,
0.9 kg - 519442

Accessories

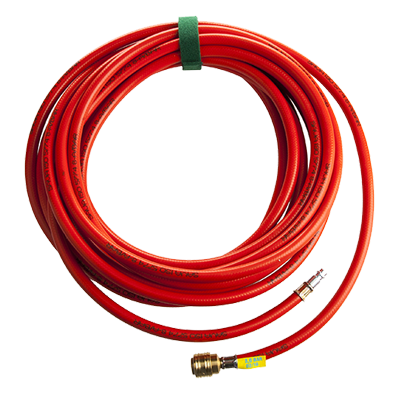

Inflation hose

10 m,
red,
1.2 kg - 74268

Accessories

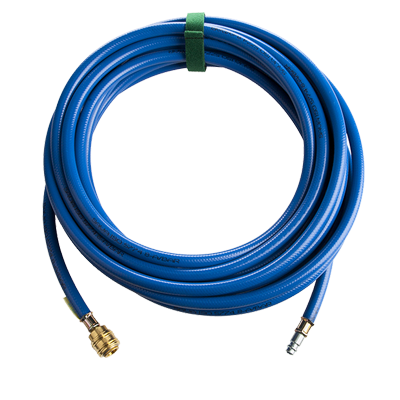

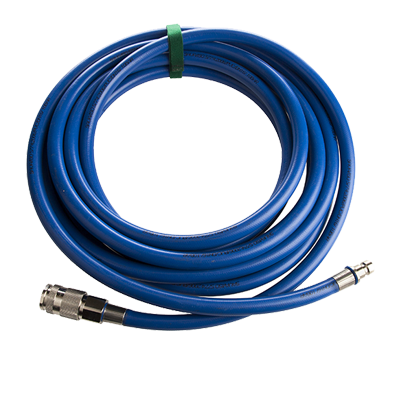

Inflation hose

10 m,
blue,
1.2 kg - 71248

Accessories

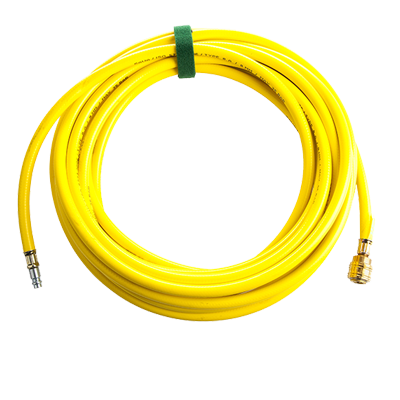

Inflation hose

10 m,
yellow,
1.2 kg - 76686

Accessories

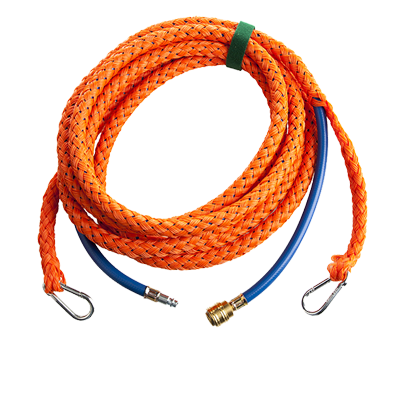

Poly lift inflation hose

5 m,
1.9 kg - 60957
10 M,
2.4 kg - 60958

Accessories

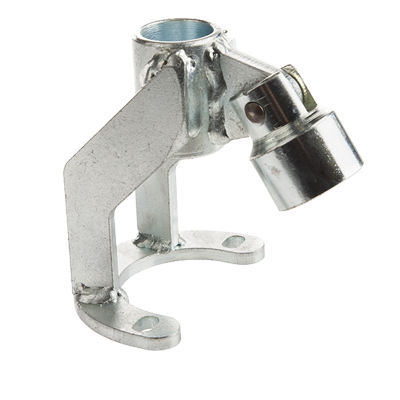

Remote placement for:

plugy 100-200
0.8 kg - 503403
plugy 200-400
1 kg - 503404
plugy 350-600, 500-1000
1.5 kg - 503406

Accessories

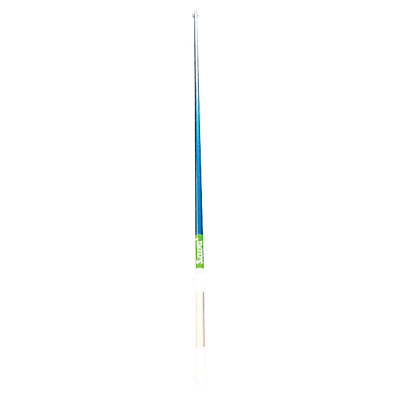

Telescopic 3-part alu pole

1 kg - 529039

PLUGY - Blocking plugs

PART
NUMBER 		NOMINAL
SIZE 		SIZE USAGE RANGE REQUIRED
INFLATION
PRESSURE
(bar) 		DEFLATED PLUG PRODUCT
WEIGHT
(kg) 		EYE BOLT INFLATION
VALVE
MIN. DIA.
(mm) 		MAX. DIA.
(mm) 		DIAMETER
(mm) 		RUBBER
LENGTH
(mm) 		M THREAD THREAD SIZE
519423 40–70 40 70 2.5 35 160 0.2 NA R 1/4"
519424 70–150 70 150 2.5 68 300 0.4 NA R 1/4"
60417 100–200 100 200 2.5 92 500 1.35 M6 R 1/4"
526850 150–200 150 200 2.5 142 350 1.85 M8 R 1/4"
60418 150–300 150 300 2.5 142 540 2.6 M8 R 1/4"
60419 200–400 200 400 2.5 192 600 3.6 M8 R 1/4"
598515 200-500 200 500 2.5 192 600 4.5 M8 R 1/4"
60599 300–525 300 525 2.5 272 630 6.8 M8 R 1/4"
598519 300-600 300 600 2.5 272 630 7.5 M8 R 1/4″
60422 350–600 350 600 2.5 322 830 9.8 M10 R 1/4"
60606 375–750 375 750 2.5 342 1050 11.9 M10 R 1/4"
60453 500–800 500 800 2.5 472 1150 19.5 M10 R 1/4"
60425 500–1000 500 1000 1.5 472 1150 19.5 M10 R 1/4"
523941 600–1200 600 1200 1.5 574 1450 38 M10 2 × R 3/8"
78959 750–1500 750 1500 1 600 2300 75 M10 2 × R 1/4"
535881 800–1800 800 1800 1 600 3000 106 M10 2 × R 1/4“

PLUGSY - Bypass plugs

PART
NUMBER 		NOMINAL
SIZE 		SIZE USAGE RANGE REQUIRED
INFLATION
PRESSURE
(bar) 		DEFLATED PLUG PRODUCT
WEIGHT
(kg) 		EYE BOLT INFLATION
VALVE 		BYPASS
DIAMETER
(FEMALE)
MIN. DIA.
(mm) 		MAX. DIA.
(mm) 		DIAMETER
(mm) 		RUBBER
LENGTH
(mm) 		M THREAD THREAD SIZE
526849 70-150 70 150 2.5 68 300 1.7 NA R 1/4” 1/2”
60429 100–200 100 200 2.5 92 500 2.7 M6 R 1/4” 1”
526851 150–200 150 200 2.5 142 350 3.3 M8 R 1/4” 1”
60432 150–300 150 300 2.5 142 540 4.3 M8 R 1/4” 1”
60434 200–400 200 400 2.5 192 600 7 M8 R 1/4” 2”
60630 300–525 300 525 2.5 272 630 12 M8 R 1/4” 2”
60440 350–600 350 600 2.5 322 830 16 M10 R 1/4” 2”
60632 375–750 375 750 2.5 342 1050 19.7 M10 R 1/4” 2”
60454 500–800 500 800 2.5 472 1150 32.5 M10 R 1/4” 2”
60442 500–1000 500 1000 1.5 472 1150 32.5 M10 R 1/4” 2”
523942 600–1200 600 1200 1.5 574 1450 55.5 M10 2 x R 3/8” 4”
78960 750–1500 750 1500 1 600 2300 91 M10 2 x R 1/2” 4”
535882 800–1800 800 1800 1 600 3000 117 M10 2 x R 1/2“ 4”

BACK PRESSURES (bar)* - Plugy, Plugsy

PLUG SIZE PIPE DIAMETER (mm)
40 70 100 150 200 250 300 350 400 500 600 800 1000 1200 1300 1400 1500 1600 1700 1800
40-70 2.0 1.2
70-150 2.2 1.7 1.3
100-200 2.2 1.7 1.3
150-200 2.0 1.5
150-300 2.2 2.0 1.4 1.2
200-400 2.2 2.0 1.7 1.5 1.2
200-500 2.3 2.2 2.1 1.7 1.5 0.7
300-525 2.0 1.7 1.5 1.2
300-600 2.2 2.0 1.7 1.2 0.4
350-600 2.1 1.9 1.6 1.3
375-750 2.0 1.7 1.4
500-800 1.8 1.4 1.1
500-1000 1.0 0.8 0.6 0.5
600-1200 1.0 0.7 0.6 0.5
750-1500 1.0 0.9 0.8 0.7 0.6 0.5
800-1800 1.0 1.0 0.9 0.8 0.7 0.6 0.5 0.5 0.4

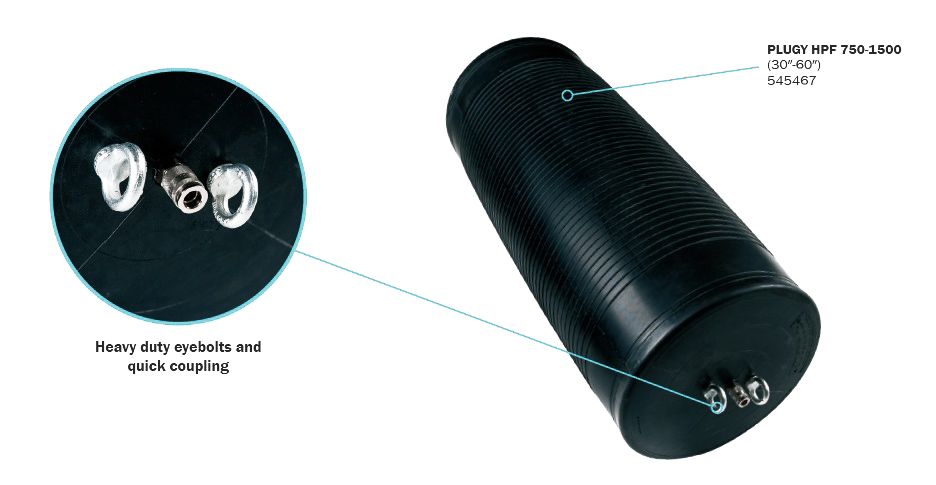

High-performance Plugs – PLUGY HPF and PLUGSY HPF

Savatech high-performance plugs PLUGY HPF and PLUGSY HPF made from high-quality rubber mixture and additional built-in aramid reinforcement ensure reliable functioning in more demanding conditions. The family of these plugs is ideal for flow stopping and pipe tightness testing. A wide range of bypass flows (4 ̋, 6 ̋, 8 ̋) is also available. They can withstand higher back pressures.

High-performance Plugs

Accessories

Accessories

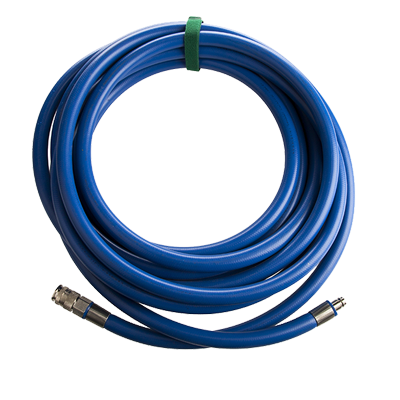

Inflation hose HPF

NW10,
10 m,
blue (up to 500-1000) (type 27)
3.4 kg - 547714

Accessories
Inflation hose HPF

NW12,
10 m,
blue (from 600-1200) (type 57)
3.4 kg - 547715

Accessories

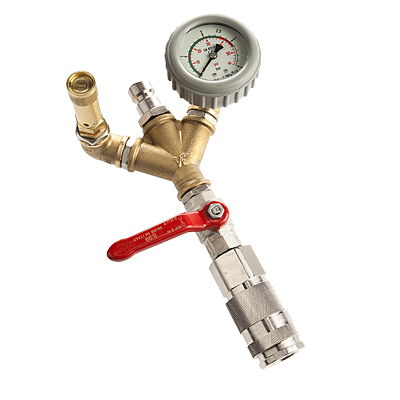

Single fitting controller

0.9 kg
3.0 bar (type 27) - 547645

Accessories
Single fitting controller

0.9 kg
2.5 bar (type 57) - 547646
1.5 bar (type 57) - 547647
1.0 bar (type 57) - 547650

PLUGY HPF - Blocking plugs

PART
NUMBER 		NOMINAL
SIZE 		SIZE USAGE RANGE REQUIRED
INFLATION
PRESSURE
(bar) 		DEFLATED PLUG PRODUCT
WEIGHT
(kg) 		EYE BOLT INFLATION
VALVE
MIN. DIA.
(mm) 		MAX. DIA.
(mm) 		DIAMETER
(mm) 		RUBBER
LENGTH
(mm) 		M THREAD THREAD SIZE
545456 100-200 100 200 3 92 500 1.2 M6 R 1/4"
545457 150-300 150 300 3 142 540 2.3 M12 R 1/2"
545458 200-400 200 400 3 192 600 3.8 M12 R 1/2"
545460 350-600 350 600 3 322 830 8.9 M12 R 1/2"
545463 500-800 500 800 3 472 1150 23 M12 R 1/2"
545464 500-1000 500 1000 3 472 1150 23 M12 R 1/2"
545465 600-1200 600 1200 2.5 574 1500 39.1 M16 R 1/2"
545467 750-1500 750 1500 1.5 600 2300 78.7 M16 R 1/2"
545783 800-1800 800 1800 1.5 600 3000 105.1 M16 R 1/2"
545785 1000-2400 1000 2400 1 960 4000 313.7 M16 R 1/2"

PLUGSY HPF - Bypass plugs

PART
NUMBER 		NOMINAL
SIZE 		SIZE USAGE RANGE REQUIRED
INFLATION
PRESSURE
(bar) 		DEFLATED PLUG PRODUCT
WEIGHT
(kg) 		EYE BOLT INFLATION
VALVE 		BYPASS
DIAMETER
MIN. DIA.
(mm) 		MAX. DIA.
(mm) 		DIAMETER
(mm) 		RUBBER
LENGTH
(mm) 		M THREAD THREAD SIZE
545468 100-200 100 200 3 92 500 2.6 M6 R 1/4" 1"
545469 150-300 150 300 3 142 540 3.9 M8 R 1/4" 1"
545470 200-400 200 400 3 192 600 6.8 M12 R 3/8" 2"
545472 350-600 350 600 3 322 830 14.8 M12 R 3/8" 2"
545473 500-800 500 800 3 472 1150 31 M12 R 3/8" 2"
545474 500-1000 500 1000 3 472 1150 31 M12 R 3/8" 2"
545475 * 600-1200 600 1200 2.5 574 1500 54.3 M16 R 1/2" 4"/6"/8" *
545476 * 750-1500 750 1500 1.5 600 2300 94.8 M16 R 1/2" 4"/6"/8" *
545784 * 800-1800 800 1800 1.5 600 3000 125.6 M16 R 1/2" 4"/6"/8" *
545787 * 1000-2400 1000 2400 1 960 4000 341 M16 R 1/2" 4"/6"/8" *

BACK PRESSURES (bar)* - PLUGY HPF, PLUGSY HPF

PLUG SIZE PIPE DIAMETER (mm)
100 150 200 250 300 350 400 500 600 800 1000 1200 1300 1400 1500 1600 1700 1800 2000 2200 2400
100-200 3 bar 2.6 2.1 1.7
150-300 3 bar 2.6 2.4 1.8 1.6
200-400 3 bar 2.6 2.4 2.1 1.9 1.6
350-600 3 bar 2.6 2.5 2.0 1.7
500-800 3 bar 2.6 2.5 1.7
500-1000 3 bar 2.6 2.5 1.7 1.0
600-1200 2.5 bar 2.1 1.9 1.5 1.0
750-1500 1.5 bar 1.2 1.1 1.0 0.9 0.8 0.7
800-1800 1.5 bar 1.3 1.2 1.1 1.0 0.9 0.8 0.7 0.6 0.5
1000-2400 1.0 bar 0.9 0.9 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.5 0.5
